The main engine renderer. More...

#include <Renderer2D.hpp>

Classes
struct	Statistics

Public Types
enum	TextAlignment : uint8_t { RIGHT , CENTER , LEFT }
	Available text alignment options. More...
enum	DrawSpace : uint8_t { WORLD_SPACE , SCREEN_SPACE , UNSPECIFIED }
	Defines where to draw the object, in what space. More...
enum	ObjectTransparency : uint8_t { OPAQUE , SEMI_TRANSPARENT }

Static Public Member Functions
static void	SubmitQuad (const DrawSpace space, const ObjectTransparency transparencyMode, const glm::mat3 &transform, const glm::vec2 halfSize, const glm::vec4 &tintColor, Texture2D *texture, const UVs &uvs, const uint8_t depth, const bool flipX, const bool flipY, const bool flatColored)
	Submits the quad to the render queue.
static void	SubmitColoredQuad (const DrawSpace space, const glm::vec2 position, const glm::vec2 halfSize, const glm::vec3 &color)
	Convenience function mainly for debugging, draws a plain colored quad.
static void	SubmitAABB (const Utility::AABB &aabb, const float lineThickness, const glm::vec3 &color)
	Draws the AABB, also a debug convenience function, always draws in world space.
static void	SubmitText (const DrawSpace space, const TextAlignment alignment, const glm::mat3 &transform, const float fontSize, const std::u32string_view &text, const glm::vec4 &color, Font *font, const uint8_t depth, const float limitX, const float lineSpacing, const float kerning)
	Draws a UTF-32 fixed length encoded string.
static void	SubmitText (const DrawSpace space, const TextAlignment alignment, const glm::mat3 &transform, const float fontSize, const std::string_view &text, const glm::vec4 &color, Font *font, const uint8_t depth, const float limitX, const float lineSpacing, const float kerning)
	Draws a UTF-32 fixed length encoded string.
static Statistics	GetStatistics ()
	Gives you the rendering stats of the last rendered frame.
static void	StartFrame ()
static void	EndFrame ()
static void	BeginScene (const World::Components::Scene::Camera &camera)
static void	EndScene ()

Detailed Description

The main engine renderer.

The render is capable of rendering 2D quads, and text for now. It can render in screen space or in world space, supports both opaque object and transparent objects, and also has a layering system to position opaque and transparent objects currently (need to finish it of with a k-way merge). When rendering text it can be aligned to the left, right or center. Render uses instancing.

Definition at line 24 of file Renderer2D.hpp.

Member Enumeration Documentation

◆ DrawSpace

enum Cori::Graphics::Renderer2D::DrawSpace : uint8_t

Defines where to draw the object, in what space.

Basically if WORLD_SPACE is selected it will use the position, rotation, scale applied to orthographic camera, and if SCREEN_SPACE it will ignore the camera position, rotation, scale and use the initial projection matrix.

Note: Never use UNSPECIFIED it is the default value and should not be used by the user.

Enumerator
WORLD_SPACE
SCREEN_SPACE
UNSPECIFIED

Definition at line 83 of file Renderer2D.hpp.

◆ ObjectTransparency

enum Cori::Graphics::Renderer2D::ObjectTransparency : uint8_t

Note: When directly using the renderer you need to correctly specify if the object you are trying to render has semi transparency or no, opaque and transparent object are processed differently.

Enumerator
OPAQUE
SEMI_TRANSPARENT

Definition at line 92 of file Renderer2D.hpp.

◆ TextAlignment

enum Cori::Graphics::Renderer2D::TextAlignment : uint8_t

Available text alignment options.

Enumerator
RIGHT
CENTER
LEFT

Definition at line 29 of file Renderer2D.hpp.

Member Function Documentation

◆ BeginScene()

void Cori::Graphics::Renderer2D::BeginScene ( const World::Components::Scene::Camera & camera )

static

Definition at line 86 of file Renderer2D.cpp.

◆ EndFrame()

void Cori::Graphics::Renderer2D::EndFrame ( )

static

Definition at line 386 of file Renderer2D.cpp.

◆ EndScene()

void Cori::Graphics::Renderer2D::EndScene ( )

static

Definition at line 116 of file Renderer2D.cpp.

◆ GetStatistics()

Renderer2D::Statistics Cori::Graphics::Renderer2D::GetStatistics ( )

static

Gives you the rendering stats of the last rendered frame.

Returns: Last frame stats.

Definition at line 377 of file Renderer2D.cpp.

◆ StartFrame()

void Cori::Graphics::Renderer2D::StartFrame ( )

static

Definition at line 381 of file Renderer2D.cpp.

◆ SubmitAABB()

void Cori::Graphics::Renderer2D::SubmitAABB	(	const Utility::AABB &	aabb,
		const float	lineThickness,
		const glm::vec3 &	color )

static

Draws the AABB, also a debug convenience function, always draws in world space.

Parameters

aabb	AABB to draw.
lineThickness	Thickness of the AABB border.
color	Border color.

Definition at line 289 of file Renderer2D.cpp.

Here is the call graph for this function:

◆ SubmitColoredQuad()

void Cori::Graphics::Renderer2D::SubmitColoredQuad	(	const DrawSpace	space,
		const glm::vec2	position,
		const glm::vec2	halfSize,
		const glm::vec3 &	color )

static

Convenience function mainly for debugging, draws a plain colored quad.

Parameters

space	DrawSpace to draw the quad.
position	Position defined is the center of the quad.
halfSize	Half size of the quad.
color	Quad color.

Note: Draws on the depth 255.

Definition at line 284 of file Renderer2D.cpp.

Here is the call graph for this function:

◆ SubmitQuad()

void Cori::Graphics::Renderer2D::SubmitQuad	(	const DrawSpace	space,
		const ObjectTransparency	transparencyMode,
		const glm::mat3 &	transform,
		const glm::vec2	halfSize,
		const glm::vec4 &	tintColor,
		Texture2D *	texture,
		const UVs &	uvs,
		const uint8_t	depth,
		const bool	flipX,
		const bool	flipY,
		const bool	flatColored )

static

Submits the quad to the render queue.

Parameters

space	DrawSpace to draw the quad.
transparencyMode	Transparency mode, defines how to handle the quad. (hint: you can query a Texture2D if it has semi transparency or no)
transform	Rendering transform. Position defined is the center of the quad.
halfSize	Half size of the quad.
tintColor	Tint color of the quad, or a color if flatColored=true.
texture	Texture to sample from.
uvs	UVs to sample with.
depth	Quad Depth, for layering, the higher the "closer".
flipX	Flip quad on X axis.
flipY	Flip quad on Y axis.
flatColored	Ignore the texture and use a plain white texture.

Warning: You need to make sure that texture pointer stays valid until the end of the frame, or this will induce a dangling pointer. Be aware!

Definition at line 157 of file Renderer2D.cpp.

◆ SubmitText() [1/2]

void Cori::Graphics::Renderer2D::SubmitText	(	const DrawSpace	space,
		const TextAlignment	alignment,
		const glm::mat3 &	transform,
		const float	fontSize,
		const std::string_view &	text,
		const glm::vec4 &	color,
		Font *	font,
		const uint8_t	depth,
		const float	limitX,
		const float	lineSpacing,
		const float	kerning )

static

Draws a UTF-32 fixed length encoded string.

Parameters

space	DrawSpace to draw text in.
alignment	Text alignment with which to draw the text.
transform	Rendering transform.
fontSize	Size of the font to render.
text	View to the UTF-8 variable length encoded string to render.
color	Color of the text to render.
font	Font to use when rendering the text.
depth	Depth at which to render the text.
limitX	Length limit of the one line.
lineSpacing	Additional line spacing.
kerning	Additional kerning.

Transform for TextAlignment::LEFT is a lower left border of the char in the first line.
For TextAlignment::CENTER it's the lower bound on y of the first line, and on x the center between the left border of the char in the first line and the right border of the char in the first line.
For TextAlignment::RIGHT it's the left lower border of the last char in the line.

Note: All text is considered semi transparent when rendering.

Warning: You need to make sure that font pointer stays valid until the end of the frame, or this will induce a dangling pointer. Be aware!

Definition at line 352 of file Renderer2D.cpp.

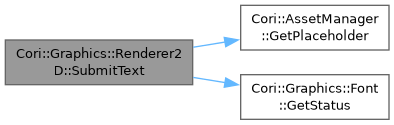

Here is the call graph for this function:

◆ SubmitText() [2/2]

void Cori::Graphics::Renderer2D::SubmitText	(	const DrawSpace	space,
		const TextAlignment	alignment,
		const glm::mat3 &	transform,
		const float	fontSize,
		const std::u32string_view &	text,
		const glm::vec4 &	color,
		Font *	font,
		const uint8_t	depth,
		const float	limitX,
		const float	lineSpacing,
		const float	kerning )

static

Draws a UTF-32 fixed length encoded string.

Parameters

space	DrawSpace to draw text in.
alignment	Text alignment with which to draw the text.
transform	Rendering transform.
fontSize	Size of the font to render.
text	View to the UTF-32 fixed length encoded string to render.
color	Color of the text to render.
font	Font to use when rendering the text.
depth	Depth at which to render the text.
limitX	Length limit of the one line.
lineSpacing	Additional line spacing.
kerning	Additional kerning.

Transform for TextAlignment::LEFT is a lower left border of the char in the first line.
For TextAlignment::CENTER it's the lower bound on y of the first line, and on x the center between the left border of the char in the first line and the right border of the char in the first line.
For TextAlignment::RIGHT it's the left lower border of the last char in the line.

Note: All text is considered semi transparent when rendering.

Warning: You need to make sure that font pointer stays valid until the end of the frame, or this will induce a dangling pointer. Be aware!

Definition at line 328 of file Renderer2D.cpp.

Here is the call graph for this function:

The documentation for this class was generated from the following files:
