Cori::Graphics::Texture2D Class Reference

A regular 2D texture with 1 layer. More...

#include <Texture.hpp>

Inheritance diagram for Cori::Graphics::Texture2D:

Collaboration diagram for Cori::Graphics::Texture2D:

Classes
class	Descriptor
	Texture2D Descriptor meant to be used with AssetManager only. More...

Public Types
enum	PixelFormat { RGBA8888 , RGB888 }
	Available pixel formats. More...
enum	WrapMode { CLAMP_TO_EDGE , CLAMP_TO_BORDER , REPEAT }
	Available wrap modes. More...
enum	Filter { LINEAR , NEAREST }
	Available filtering options. More...

Public Member Functions
virtual uint32_t	GetWidth () const =0
	Gives the texture width.
virtual uint32_t	GetHeight () const =0
	Gives the texture height.
virtual bool	HasSemiTransparency () const =0
	Checks if texture has semi transparency.
virtual void	Bind (uint32_t slot) const =0
	Binds the texture to the slot.
AssetStatus	GetStatus () const

Static Public Member Functions
static std::shared_ptr< Texture2D >	Create (const std::shared_ptr< Image > &image)
	Creates a Texture2D from the Image.
static std::shared_ptr< Texture2D >	Create (const void *pixelData, const uint32_t width, const uint32_t height, const Params &params)
	Creates a Texture2D.

Protected Attributes
AssetStatus	m_Status { AssetStatus::UNSPECIFIED }

Detailed Description

A regular 2D texture with 1 layer.

Definition at line 99 of file Texture.hpp.

Member Enumeration Documentation

Filter

enum Cori::Graphics::Texture::Filter

inherited

Available filtering options.

Enumerator
LINEAR
NEAREST

Definition at line 38 of file Texture.hpp.

PixelFormat

enum Cori::Graphics::Texture::PixelFormat

inherited

Available pixel formats.

Enumerator
RGBA8888
RGB888

Definition at line 24 of file Texture.hpp.

WrapMode

enum Cori::Graphics::Texture::WrapMode

inherited

Available wrap modes.

Enumerator
CLAMP_TO_EDGE
CLAMP_TO_BORDER
REPEAT

Definition at line 31 of file Texture.hpp.

Member Function Documentation

Bind()

virtual void Cori::Graphics::Texture::Bind ( uint32_t slot ) const

pure virtualinherited

Binds the texture to the slot.

Parameters

slot	Slot to bound the texture to.

Note

Don't touch this if you're not using it outside the provided Renderer2D.

Implemented in Cori::Graphics::Internal::OpenGLTexture2D.

Create() [1/2]

std::shared_ptr< Texture2D > Cori::Graphics::Texture2D::Create ( const std::shared_ptr< Image > & image )

staticnodiscard

Creates a Texture2D from the Image.

Parameters


Image to create Texture2D from.

Returns

Shared pointer to the created Texture2D.

Definition at line 7 of file Texture.cpp.

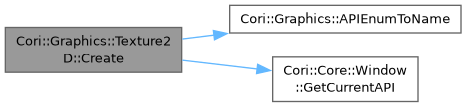

Here is the call graph for this function:

Create() [2/2]

std::shared_ptr< Texture2D > Cori::Graphics::Texture2D::Create ( const void * pixelData, const uint32_t width, const uint32_t height, const Params & params )

staticnodiscard

Creates a Texture2D.

Parameters

pixelData	Pixel data to create Texture2D from.
width	Width of the source picture data.
height	Height of the source picture data.
params	Parameters to create a texture with.

Returns

Shared pointer to the created Texture2D.

Definition at line 13 of file Texture.cpp.

Here is the call graph for this function:

GetHeight()

virtual uint32_t Cori::Graphics::Texture::GetHeight ( ) const

nodiscardpure virtualinherited

Gives the texture height.

Returns

Texture height.

Implemented in Cori::Graphics::Internal::OpenGLTexture2D.

GetStatus()

AssetStatus Cori::Graphics::Texture::GetStatus ( ) const

inlineinherited

Definition at line 88 of file Texture.hpp.

GetWidth()

virtual uint32_t Cori::Graphics::Texture::GetWidth ( ) const

nodiscardpure virtualinherited

Gives the texture width.

Returns

Texture width.

Implemented in Cori::Graphics::Internal::OpenGLTexture2D.

HasSemiTransparency()

virtual bool Cori::Graphics::Texture::HasSemiTransparency ( ) const

nodiscardpure virtualinherited

Checks if texture has semi transparency.

Returns

Implemented in Cori::Graphics::Internal::OpenGLTexture2D.

Member Data Documentation

m_Status

AssetStatus Cori::Graphics::Texture::m_Status { AssetStatus::UNSPECIFIED }

protectedinherited

Definition at line 93 of file Texture.hpp.

---

The documentation for this class was generated from the following files:

• Texture.hpp
• Texture.cpp
